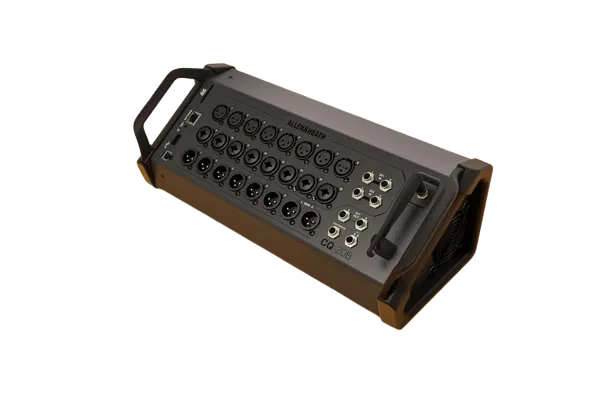

CQ is Allen & Heath’s most compact digital mixer range ever.
Built on a 96kHz processing engine, it’s rich in connectivity with Bluetooth, wireless
options, SD and USB audio recording and playback.

Focusing on speed and ease of use - brand new Quick Channels, Gain/Feedback
Assistants and signal conscious FX enhance the world-renowned audio and build
quality that users expect from Allen & Heath.

Offered in three form factors – two desktop models with hands-on control and one
stage box model. All utilise the same technology, apps, and UI but with slightly
different feature sets and price points.

With the CQ range, Allen & Heath have created a super portable and fun to use, but
still fully featured digital mixer, suitable for technical and non-technical users alike.
CQ is designed to be used anywhere high-quality sound processing and summing is
required, from bands and producers to AV and rental, from the main mixer in a small
venue to a sub mixer on the largest stage.

Hardware Features:

• 16 Mic/Line preamps, 8x XLR 8x XLR/TRS ‘Combi’
• 2x Balanced stereo line input, 4x TRS
• Main LR, 2x XLR
• 6x Monitor Mixes, 6x XLR
• Assignable Stereo Line Out, 2x TRS
• Assignable headphone output, 6.35mm TRS
• 24x24 USB-B interface
• 24x24 SD record/playback
• Stereo USB record/playback with dedicated input channel
• Stereo Bluetooth playback with dedicated input channel
• 4x FX engines
• Dual Footswitch connection
• Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select
• 372mm x 153mm x 133mm, 2.6kg
