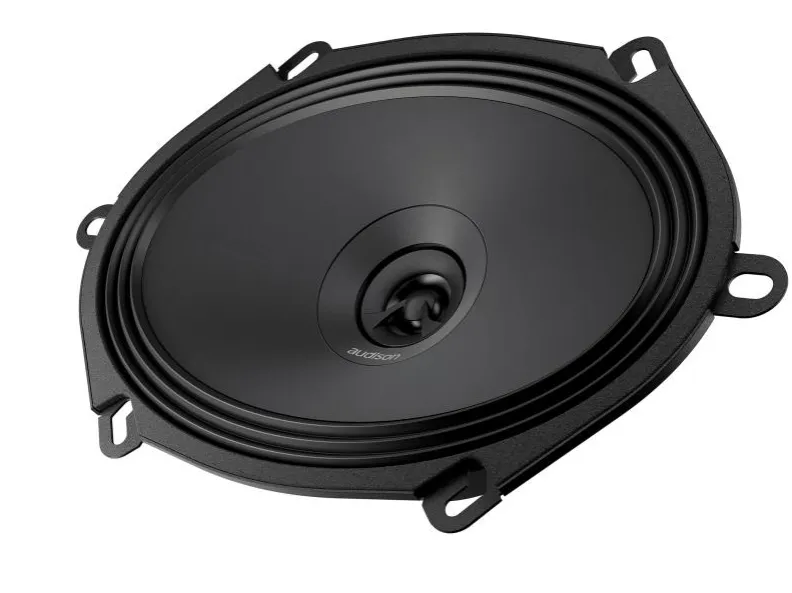

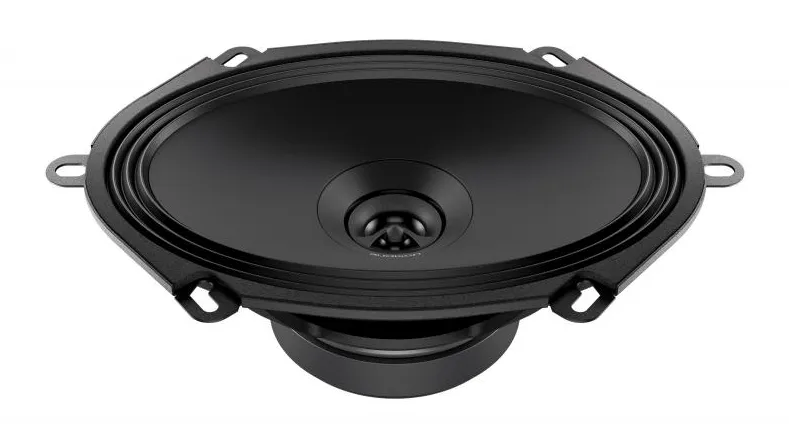

APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer tweeter.
The 5 7" cones surround features an exclusive shallow Triple Wave profile, for maximum excursion linearity.

Specs

Comp Two way coaxial
Size Woofer (5" x 7")
Tweeter diaphragm 24 mm (0.9")
Power Handling 70 W Continuous Power
210 W Peak Power
Impedance 4
Frequency Response 60 23k Hz
Sensitivity 93 dB/Spl
Magnet High density flux ferrite
Dome Water-repellent pressed paper
