Product Details
＋

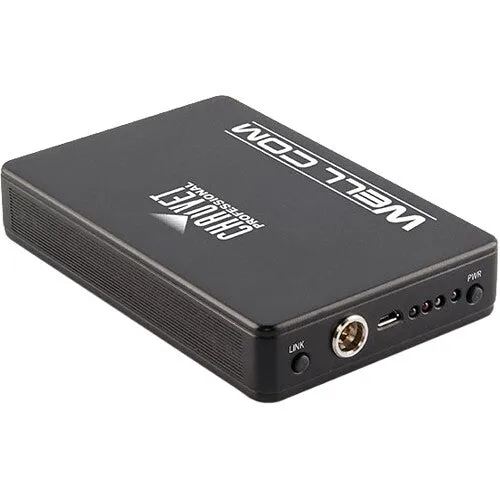

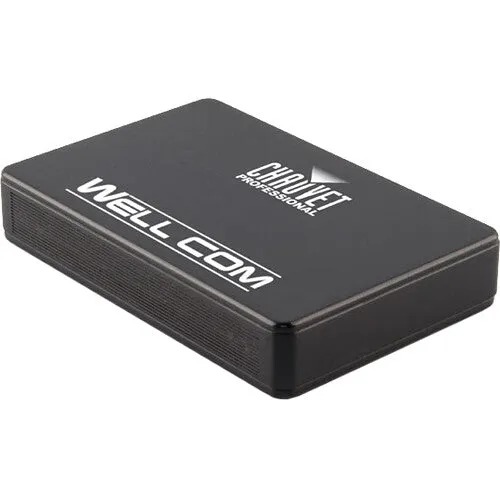

The WELL Com V2 Wireless DMX Controller from CHAUVET PROFESSIONAL allows you to control your W-DMX lights from a smartphone or tablet from distances up to 656'. For venues such as theaters, traditional wired DMX for console control can also use the full 512 channels. Among the controller's many features are 18 scenes available for playback and 24 steps per scene with selectable fade and hold times for building chases and cues.
The controller is ready for worldwide use, thanks to its 100 to 240V power supply, but it will also run on its battery for eight hours on a full charge.
Benefits
- Compact, easy-to-use battery-powered Wi-Fi receiver and wireless WDMX transmitter with a control app
- 8 hours of usage on a full charge
- Compatible with Android and iOS on both smartphones and tablets
- Output can be used in wireless W-DMX or wired DMX protocols
- Full universe of DMX available for programming larger events
- Built-in color picker and color macros for use with RGB, RGBA, and RGBW wash fixtures
- Program up to 24 steps per scene with selectable fade and hold times for building chases and cues
- A total of 18 scenes available for playback
- Easy-to-navigate user interface
- Line-of-sight control distance up to 656'
Specifications
General
| Inputs/Outputs | 1 xUSB-B Male Input |
| Channels | 512 (DMX) |
| Wireless Range | 656.2' / 200 m (Wi-Fi) |
Power
| Power Source | AC Adapter |
| Power Consumption | 7 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 5 VDC at 1600 mA |
| Runtime | 8 Hours |
| Recharge Time | 8 to 8 Hours |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 6000 mAh |
Compatibility
| Protocol | W-DMX |
Environmental
| Certifications | FCC, CE *as per Manufacturer |
| IP Rating | IP20 |
| Environmental Protection | Advertised as Dust Resistant *Manufacturer Testing: IP20 |
Physical
| Material of Construction | Polycarbonate |
| Cable Length | 3' / 0.9 m |
| Dimensions | 5.1 x 3.3 x 1.0" / 130.4 x 85.0 x 25.0 mm |
| Weight | 0.7 lb / 0.3 kg |
