Engineered to bring a new dimension of reality and convenience to a flush-mount design, the Klipsch R-5650-S II in-wall surround sound speaker features a unique patented horn array that allows system designers to create enveloping sound fields and localized effects without disrupting a home's decor.

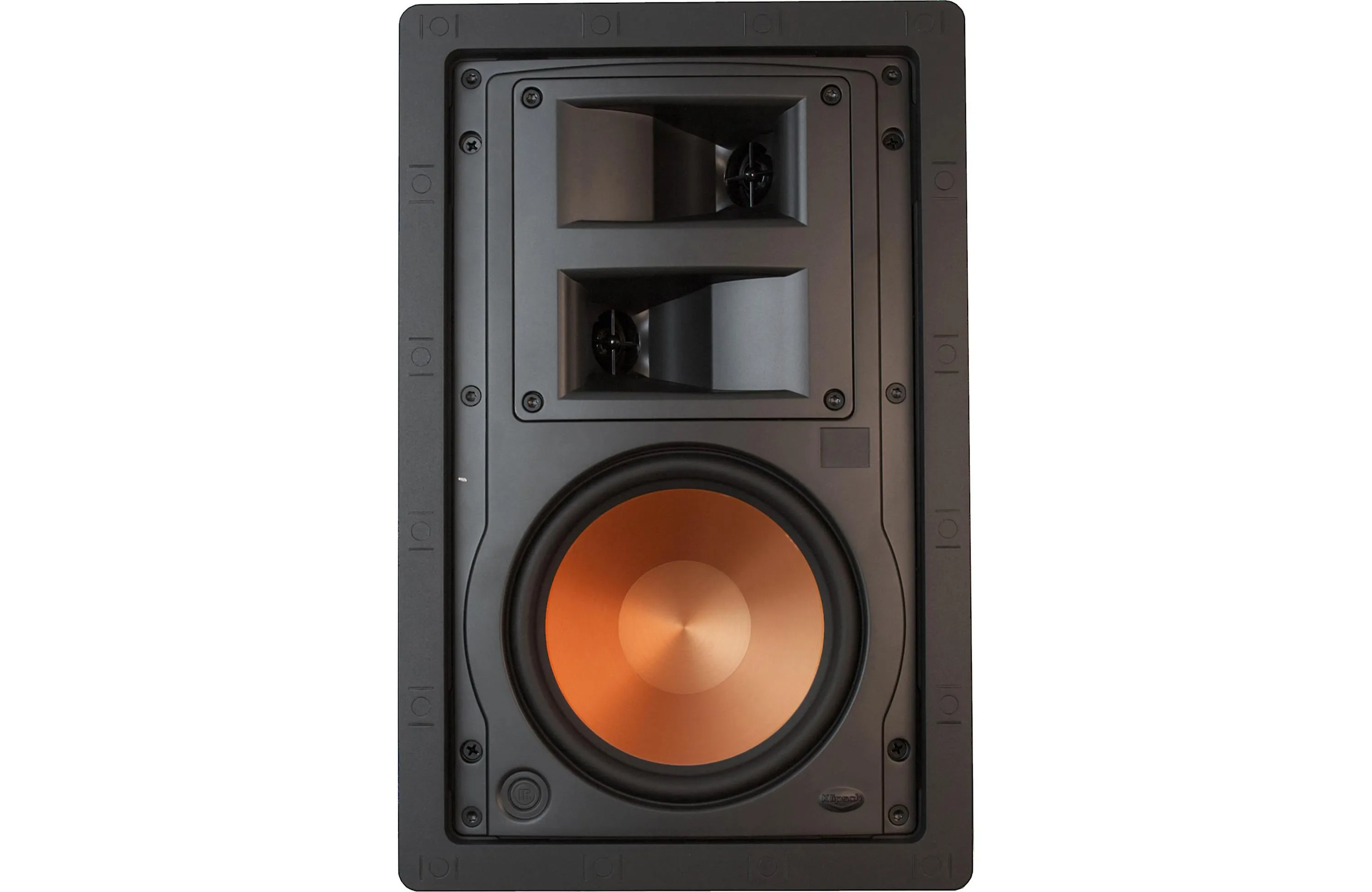

Two vertically stacked Tractrix Horn-loaded tweeters maximize surround sound effects

Horn-loaded technology increases acoustic output while significantly reducing distortion

IR receiver knock out

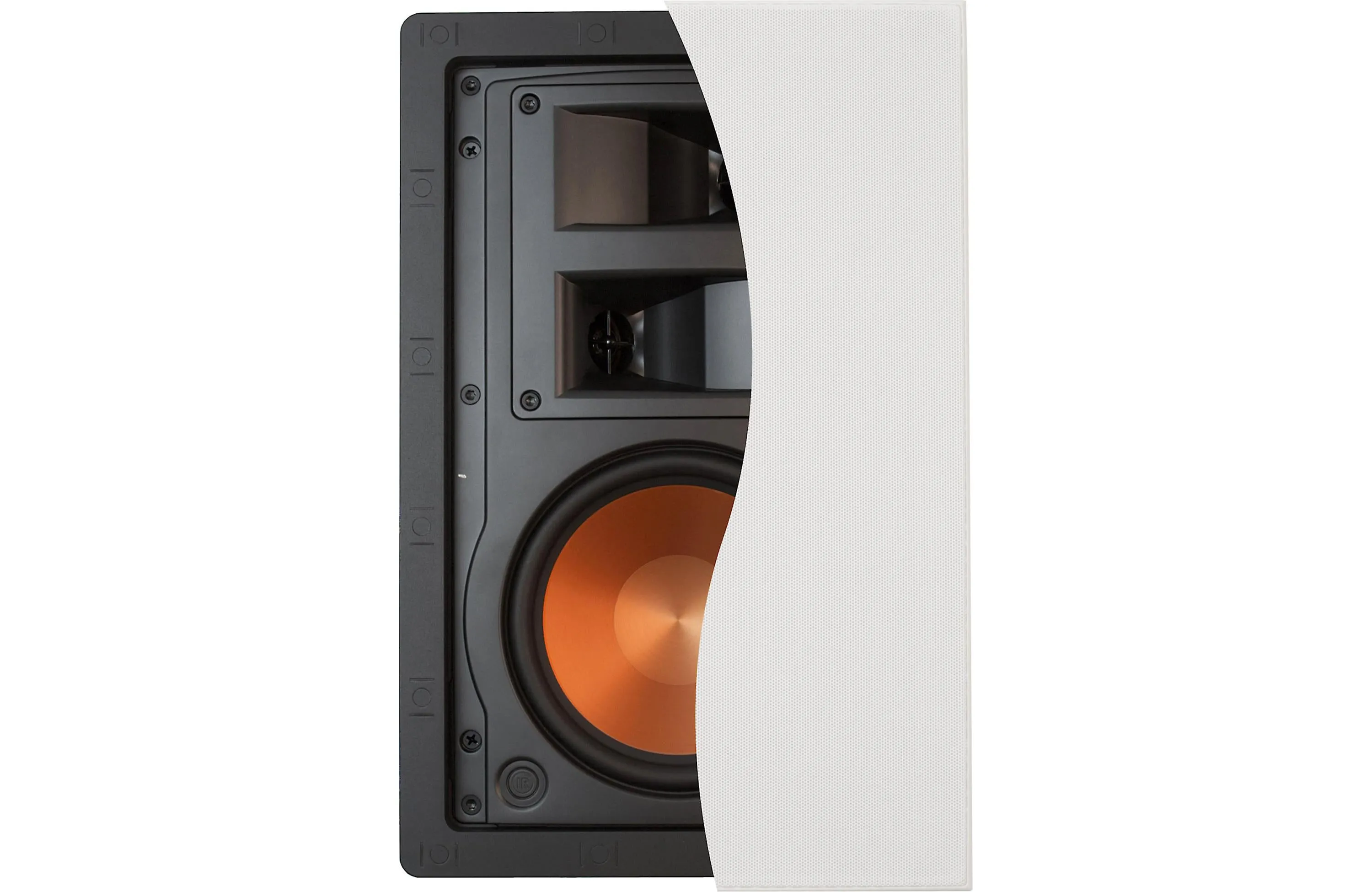

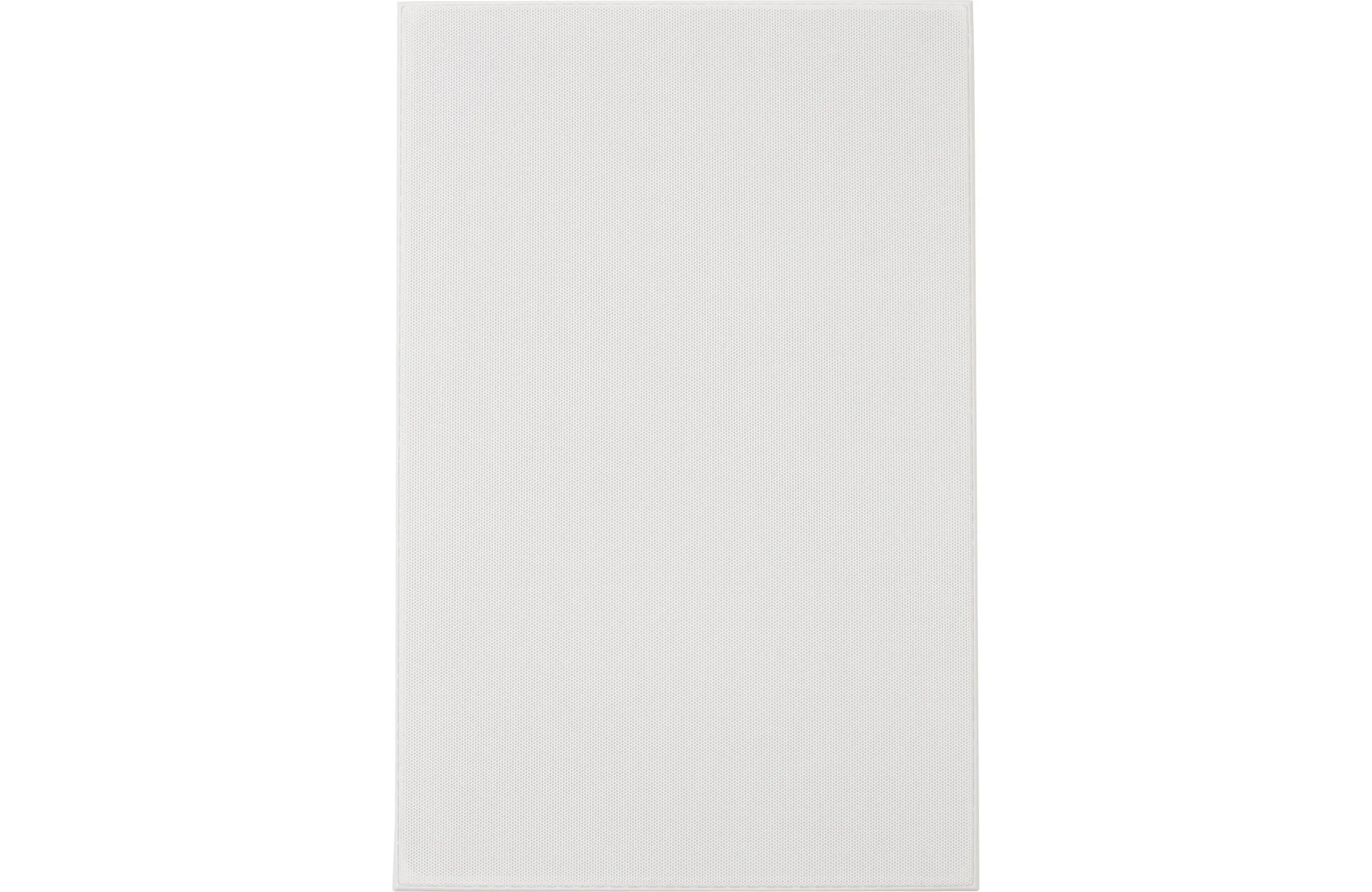

Elegant new, low-profile SlimTrim magnetic grille

Specs

Frequency Response: 60Hz-23KHz 3dB
SENSITIVITY: 92dB @ 2.83V / 1m
POWER HANDLING: 50W RMS / 200W Peak
NOMINAL IMPEDANCE: 8 ohms compatible
RECOMMENDED AMPLIFIER POWER: 100 W
HIGH FREQUENCY DRIVERS: Dual 1" (2.54cm) Titanium dome compression drivers mated to a dual Tractrix Horn array for surround sound
Low Frequency Driver: 6.5" (16.51cm) Cerametallic cone woofer
CROSSOVER FREQUENCY: 3400Hz
Enclosure Material/Type: ABS/Infinite baffle, front flush with wall
DIMENSIONS: 14.3" H (36.32cm) x 9.3" W (23.62cm)
Cutout Dimensions: 13" H (33.02cm) x 8" W (20.32cm)
MOUNTING DEPTH: 3.75" (9.5cm)
WEIGHT: 7.2 lbs. (3.25kg)
FINISH: White paintable frame and grill
FIRE RATED ENCLOSURE: ME-650-W (sold separately)
INSTALLATION KIT: IK-650-W (sold separately)
Wire Gauage Accommodated: 12 ga
Built From: 2012
