TR50 – 1,100 lb. (500 kg) rated load, 23 fpm (7 m/min), 61⁄2 ft. (2 m) pendant, 220 V single phase

Portable, drumless material hoist using 1⁄4 in. (6.5 mm) wire rope.
Includes 61⁄2 ft. (2 m) push button pendant control. Steel carrying box provided for TR 10 and TR 30 ONLY.

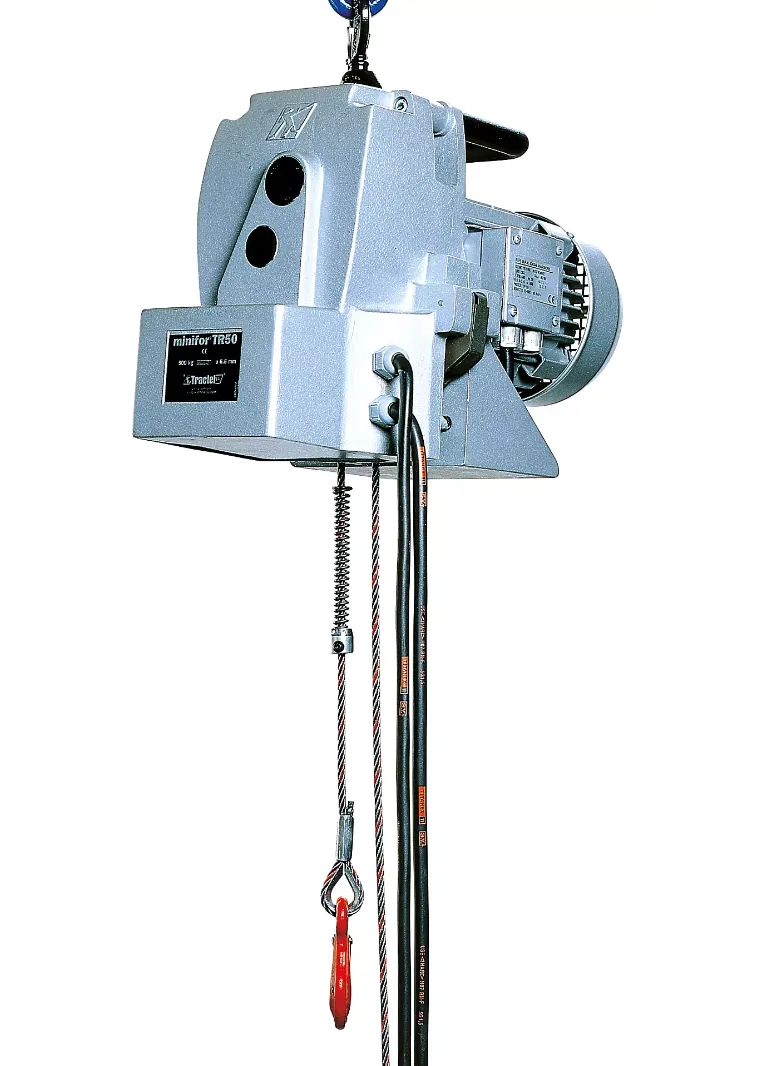

minifor® - TR50
Portable electric hoist with unlimited lifting height

FEATURES

• Portable and powerful
• Compact, lightweight design for easy installation
• Unlimited height of lift
• Optional rope reeler
• Direct lift or sheaving kit for increased capacity
• Single phase or three phase power
• Comes with blue steel box
• Optional wireless remote control available

QUALITY AND POWER

• High power to weight ratio
• Body in aluminum alloy
• Unlimited length of lifting wire rope
• Rated loads: 1,000 lbs. (500 kg)
• Wire rope diameter: 1⁄4 in. (6.5 mm)*
• Lifting speed: 23 fpm (7 m/min)
• 115 V standard
• 220 V standard

SAFETY

• Upper and lower adjustable end limit stops
• Motor integrated brake
• Meets ANSI ASME B30.16

* Wire rope sold separately
  220 V three phase models available upon request
  Reelers of 60 and 110 ft. (18 and 33.5 m) available for TR10 and TR30
  Optional wireless remote control available
  Direct lift or sheaving kit available for increased capacity
