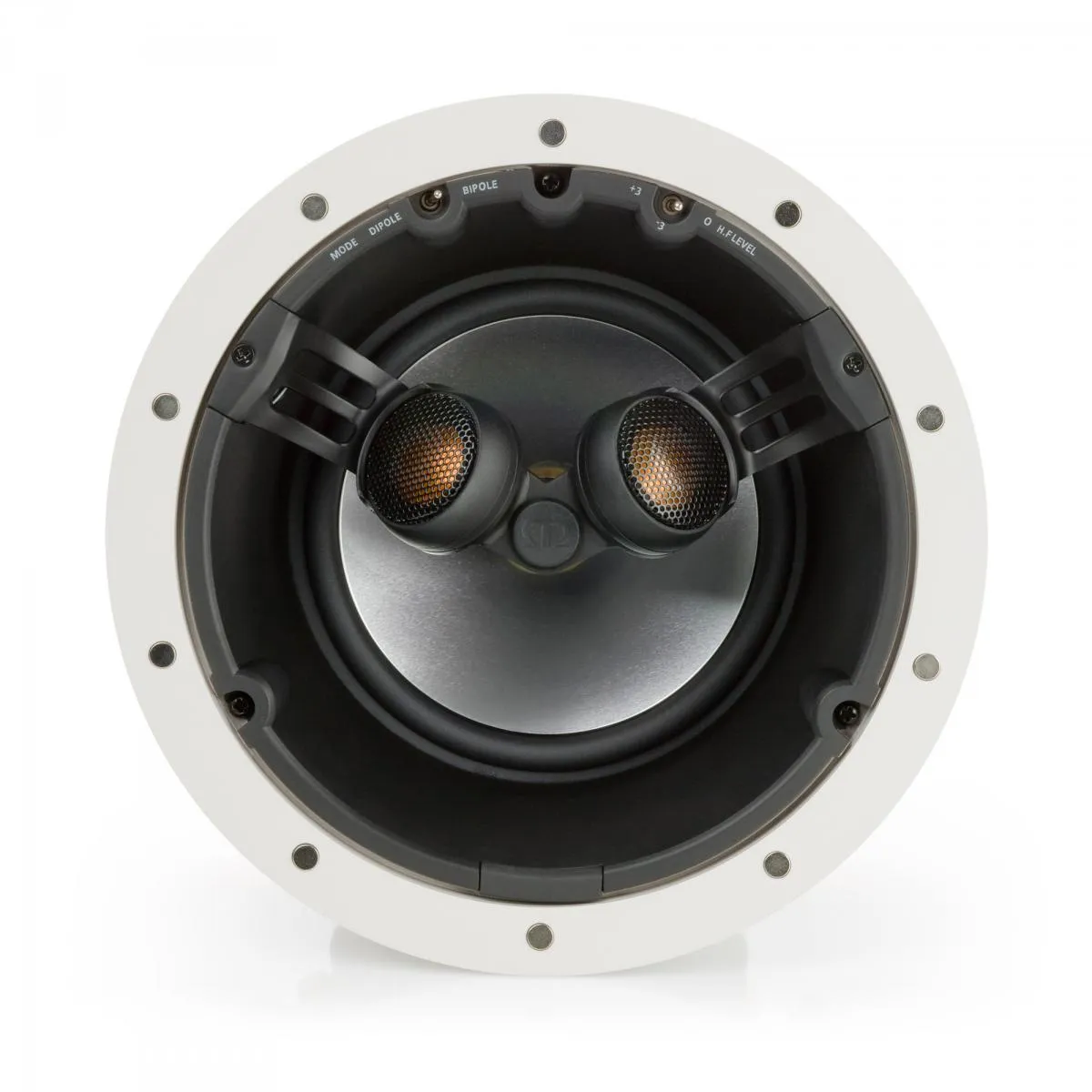

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound. Incorporates a 6.5-inch C-CAM bass driver and dual 1-inch C-CAM gold dome tweeters mounted at a precise fixed-angle for optimised performance.

Dual tweeter configuration for use in di-pole or bi-pole mode.

C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.

High overall efficiency.

High frequency level adjustment ( /- 3dB).

Boundary compensation control.

Audio match with CP range 200 models and Silver Series hi-fi speakers.

Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

Magnetic and easily removable steel grille.

All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.

All models are splash and humidity proof for installation in shower rooms or pool areas.

All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.

Specs

Frequency Response
60 Hz - 30 kHz

Impedance (Nominal)
6 Ohms

Sensitivity (1W@1M)
88.5 dB

Maximum SPL
108 dBA

Power Handling (RMS)
85 W

Recommended Amp Requirements
20 - 85 W

Drivers Unit Complement
6.5 C-CAM cone bass driver 2 x 1 C-CAM fixed angle gold dome tweeters

Adjustment Controls
HF Level Switch ( 3dB / 0dB / -3dB) Bi pole / Di pole Switch

Overall Diameter:(including grille)
250 mm (9 13/16 inch)

Overall Depth:(including grille)
153 mm (6 inch)

Cut Out Diameter
211 mm (8 1/4 inch)

Mounting Depth
149 mm (5 7/8 inch)

Fixing Type 3 position Tri-Grip dog leg fixings Construction Material Mineral Filled ABS Plastic

Pre-Construction Bracket
CB6 (Purple)

Weight
2.08kg (4lb 10oz)
